Box High Speed Automatic Folder Gluer Stitcher Machine

Ask Lasest Price
Brand Name :	FENGCHI
Model Number :	HD-2800
Certification :	CE, ISO9001
Price :	TBA
Payment Terms :	T/T, D/P, L/C
Supply Ability :	Monthly 50 flute laminators + 20 stackers
Delivery Time :	around 20 days(7 days for urgent order)

Add to Cart

Product Details
Company Profile

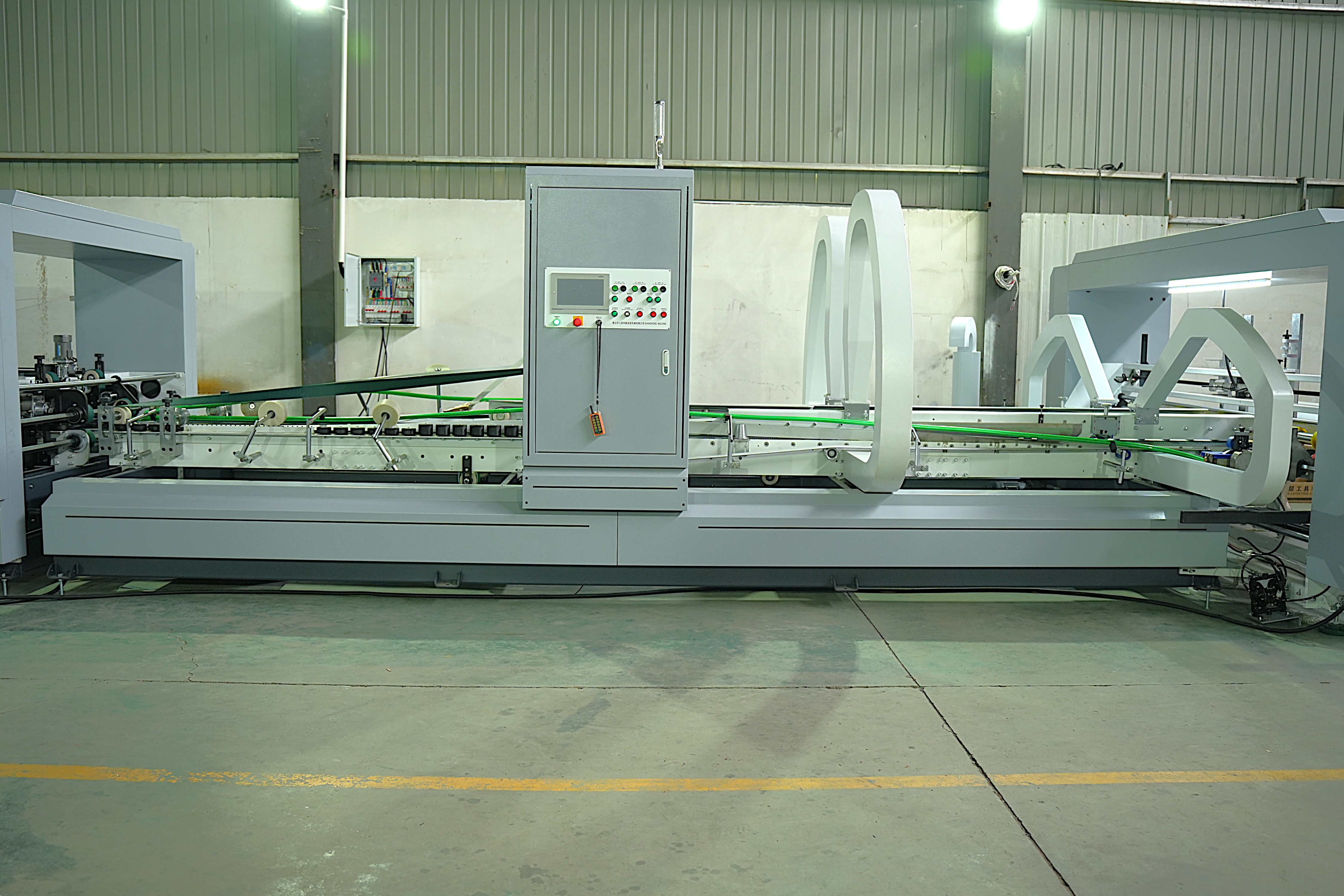

Box High Speed Automatic Folder Gluer Stitcher Machine

HIGH SPEED AUTOMATIC

FOLDER GLUER AND STITCHER

The key feature of the machine is the full computer control, easy operation, stable quality, manpower saving.
All-in-one machine, separate folder gluer, stitching, folder gluer and stitching. Single stitching, double stitching can be switched freely.
Job-change around 3-5 mins, with order memory function
Suitable for A/B/C/AB flute, 3ply, 5ply, mono cardboard
Automatic paper folding, correction,stitching , gluing, counting and stacking.
Using swin head with small power consumption, faster speed, more stable, effectively improve the quality of nail box.
Using the paper correction function to make secondary compensation and correct the positioning, eliminate the scissors mouth.
The automatic stitch feeding can realize stitch detection and stitch breaking.
One-key conversion between stitching and gluing function

PRODUCT HIGHLIGHTS

Feeding Part

1.With the retention frame pneumatic flap, more stable, higher accuracy.

2.Siegling high wear-resistance suction belt, can control the air volume,

Ensure complete paper adsorption, ensure stable paper transmission, accurate positioning.

3.Split air suction unit, effectively reduce the after-sales maintenance cost and time.

1. The patented design with active line pressing

device to ensure the stability, good forming effect and smooth packing.

3.The independent edge pressing structure

effectively solves the problem of thick cardboard blasting in the process of stitching.

4.The split transmission shaft can be adjusted

separately and tightened to ensure that the belt pressure is consistent, the paper is stable and

effectively avoid the shaft phenomenon.

Folding Part

Small Arm

Stitching Part

5.Adopts synchronous belt drive to avoid the phenomenon of cold start skid and ensure the smooth transmission of paper.
6.Reinforced four-axis transmission to ensure that the machine operation, transportation process is stable, no deformation.

4.Reciprocating straight line beat correction, high accuracy, stable operation.

5.The forward -leaning arched beam is conducive for carton connection and transmission.

6.With the sunken belt, greatly strengthen the

molding accuracy and smoothness of the carton.

1.Using the swing stitching head, small power

consumption, faster speed, more stable, effectively improved the quality of nail box.

2. Integrated connection mode to ensure the

accurate distance, installation and maintenance and easy to operate.

3. Customized alloy material to ensure that the knife is used 6 million times without wear.

4. The heat dissipation properties and mechanical properties of seven series alloy aluminum are

higher than those of ordinary materials.

Model: HD-2800 HD-3600

Max sheet:	Width 2800 mm × Length 1100mm	Width 3600 mm × Length 1600mm
Min sheet:	Width 850mm× length 300mm	Width 1160mm×length 400mm
Max stitching speed:	1200 stitches/min	1200 stitches/min
Stiching gap: Stitching quantity: Machine net weight:	40-500mm 1-99 9.7T	40-500mm 1-99 12T
Machine size:	L 17000mm X W 4100mm X H2200mm	L 19000mm X W4400mm X H2800mm
Stitch angle:	45°	45°
Air source :	0.6-0.8Mpa	0.6-0.8Mpa
Power source:	380VAC/3P ,50Hz	380VAC/3P ,50Hz
Power:	≤ 23 KW	≤ 23 KW
Applicable paper:	A, B, C, AB flute, 3ply, 5ply corrugated paper	A, B, C, AB flute, 3ply, 5ply corrugated paper
