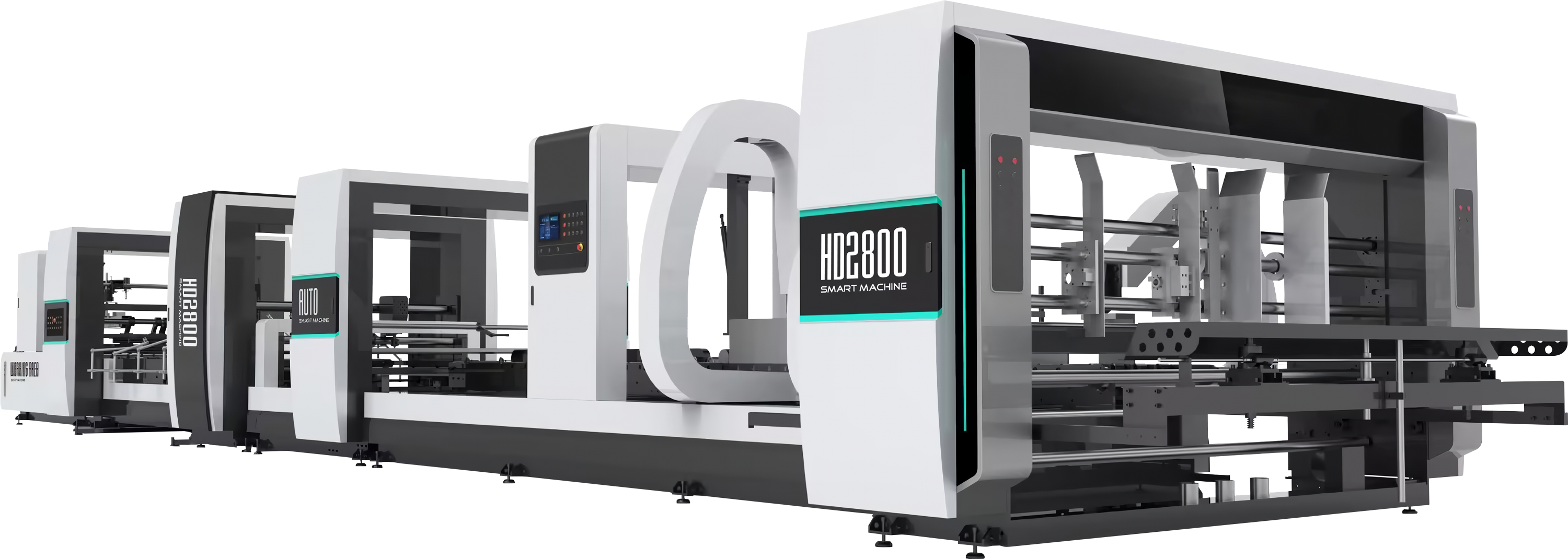

HIGH SPEED AUTOMATIC FOLDER GLUER AND STITCHER

The key feature of the machine is the full computer control, easy operation, stable quality, manpower saving.

All-in-one machine, separate folder gluer, stitching, folder gluer and stitching. Single stitching, double stitching can be switched freely.

Job-change around 3-5 mins, with order memory function Suitable for A/B/C/AB flute, 3ply, 5ply, mono cardboard

Automatic paper folding, correction,stitching , gluing, counting and stacking.

Using swin head with small power consumption, faster speed, more stable, effectively improve the quality of nail box.

Using the paper correction function to make secondary compensation and correct the positioning, eliminate the scissors mouth.

The automatic stitch feeding can realize stitch detection and stitch breaking. o One-key conversion between stitching and gluing function

PRODUCT HIGHLIGHTS
Feeding Part	Feeding Part	Feeding Part
1.With the retention frame pneumatic flap, more stable, higher accuracy. 2.Siegling high wear-resistance suction belt, can control the air volume, Ensure complete paper adsorption, ensure stable paper transmission, accurate positioning. 3.Split air suction unit, effectively reduce the after-sales maintenance cost and time.	1. The patented design with active line pressing device to ensure the stability, good forming effect and smooth packing.	3.The independent edge pressing structure effectively solves the problem of thick cardboard blasting in the process of stitching. 4.The split transmission shaft can be adjusted separately and tightened to ensure that the belt pressure is consistent, the paper is stable and effectively avoid the shaft phenomenon.
Folding Part	Small Arm	Stitching Part
5.Adopts synchronous belt drive to avoid the phenomenon of cold start skid and ensure the smooth transmission of paper. 6.Reinforced four-axis transmission to ensure that the machine operation, transportation process is stable, no deformation.	4.Reciprocating straight line beat correction, high accuracy, stable operation. 5.The forward -leaning arched beam is conducive for carton connection and transmission. 6.With the sunken belt, greatly strengthen the molding accuracy and smoothness of the carton.	1.Using the swing stitching head, small power consumption, faster speed, more stable, effectively improved the quality of nail box. 2. Integrated connection mode to ensure the accurate distance, installation and maintenance and easy to operate. 3. Customized alloy material to ensure that the knife is used 6 million times without wear. 4. The heat dissipation properties and mechanical properties of seven series alloy aluminum are higher than those of ordinary materials.
HD-2800 HD-3600 Max sheet: Width 2800 mm × Length 1100mm Width 3600 mm × Length 1600mm Min sheet: Width 850mm× length 300mm Width 1160mm×length 400mm Max stitching speed: 1200 stitches/min 1200 stitches/min Stiching gap: Stitching quantity: Machine net weight: 40-500mm 1-99 9.7T 40-500mm 1-99 12T Machine size: L 17000mm X W 4100mm X H2200mm L 19000mm X W4400mm X H2800mm Stitch angle: 45° 45° Air source : 0.6-0.8Mpa 0.6-0.8Mpa Power source: 380VAC/3P ,50Hz 380VAC/3P ,50Hz Power: ≤ 23 KW ≤ 23 KW Applicable paper: A, B, C, AB flute, 3ply, 5ply corrugated paper A, B, C, AB flute, 3ply, 5ply corrugated paper

Guangdong Fengchi Printing Machinery Co,LTD. started business since 2009, who is theonly manufacturer specialized in single category of laminating machine all the time. Asmaster in this industry, we provide world-class laminating machines with reasonable priceWe serve the paper printing & packaging industry such as color boxes and corrugatedcarton, help solve the manufacturing process of over-gluing laminating and stacking afterthe post-printing for color cardboard & corrugated cartons, Customized service is carriedout according to the actual needs of users.
Be different from other multi-category equipment company, FENGCHl only focus onlaminating machines and made continuous breakthrough innovations in laminating speedand 30 self-developed patents in past 15 years. All products are strictly granted by CEstandard and factory is granted with lS09001 quality system.
FENGCHl is a technology-oriented factory with strong R&D team of nearly 30 people withmore than 35 years in the printing and packaging industry, half of them are Doctor DegreeNow we have have after-sale office in China, Europe, Vietnam, India, Malaysia, KoreaIndonesia, we aim to build global after-sale center before 2025, Because of the professionadesign, stable quality, innovative technology, reasonable price and perfect after-sale serviceFENGCHl became the top one turnover in China for paper laminator machine in 2022.

.
